Hot Sale Stainless Steel SS304 Wire Mesh Cable Tray

Hot Sale Stainless Steel SS304 Wire Mesh Cable Tray

Quick Details Place of Origin: Jiangsu, China (Mainland) Brand Name: Guomei Model Number: GM Type: Wire Mesh Material: Steel Width: 50-900mm Length: 1-6m

Inquiry

  • Product Details

Quick Details

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: Guomei

  • Model Number: GM

  • Type: Wire Mesh

  • Material: Steel

  • Width: 50-900mm

  • Length: 1-6m

  • Side Rail Height: 12-200mm

  • Max. Working Load: Depends

  • Certificates: UL,CE,ISO

  • Samples: Freely

  • OEM: Availiable

  • Max Loading: Depends on size

  • Color: As your request


Packaging & Delivery

Packaging Details:Standard export package or as your request
Delivery Detail:Shipped in 10 days after payment


Factory Introduction

Jiangsu Guomei Steel Bridge Frame Co.,Ltd

Jiangsu Guomei Steel Bridge Frame Co.,Ltd is located in Yangzhong of Jiangsu Province. Our company is a professional enterprise integrating the product design,production, marketing and internation of cable bridge and busbar trunking.

Our main products are GM series steel mesh type bridge, QGQJ lightweight high-strength cable bridge anti-corrosion, XQJ series cable tray, HFB series fire retardant bridge, CFW-2A high strength enclosed busbar trunking, CGH series fire bearing busbar, power distributing cabinet, lighting box, safety sliding contact type bus tube valve parts and so on.

Our company has complete industrial product lines with kinds of high-accuracy test machines which also passes ISO9001:2000,UL,CE and new quality series identification. Jiangsu Guomei Steel Bridge Frame Co.,Ltd will keep scientific management, honoring prosime, developing products with innovative ideas and drawing together to fight for the best. Thanks for the concern and patronage of all the lovely customers, we sincerely welcome any domestic or foreign enterprise to participate in our cooperation and converses

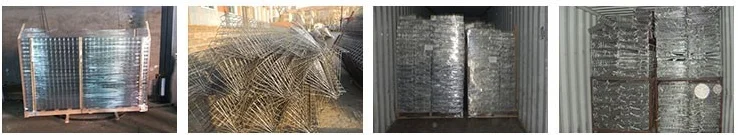

Detailed Images


Product Description

Material:

Q235B Steel (Chinese standard steel), SS304, SS316 & HDG.
Surface Finish:
Electro zinc plated – for indoor use to BS EN 12329-2000, 12microns thick.
Hot Dipped Galvanized – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing – for stainless steel use
Powder coating-for indoor and outdoor use.
Dimensions:
Cable Tray dimensions are all internal.
Depth of 50mm, 100mm &150mm
Widths of 50mm, 100mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm & 600mm.
Length of 2997 fit max loading capacity in 40’ft containers.
Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration. Diameters of wires are 5.0mm.


Packing & Delivery

Packaging Details: Standard export package or according to customers' requirements.

Delivery Detail: Shipped in 15 days after payment


Certifications

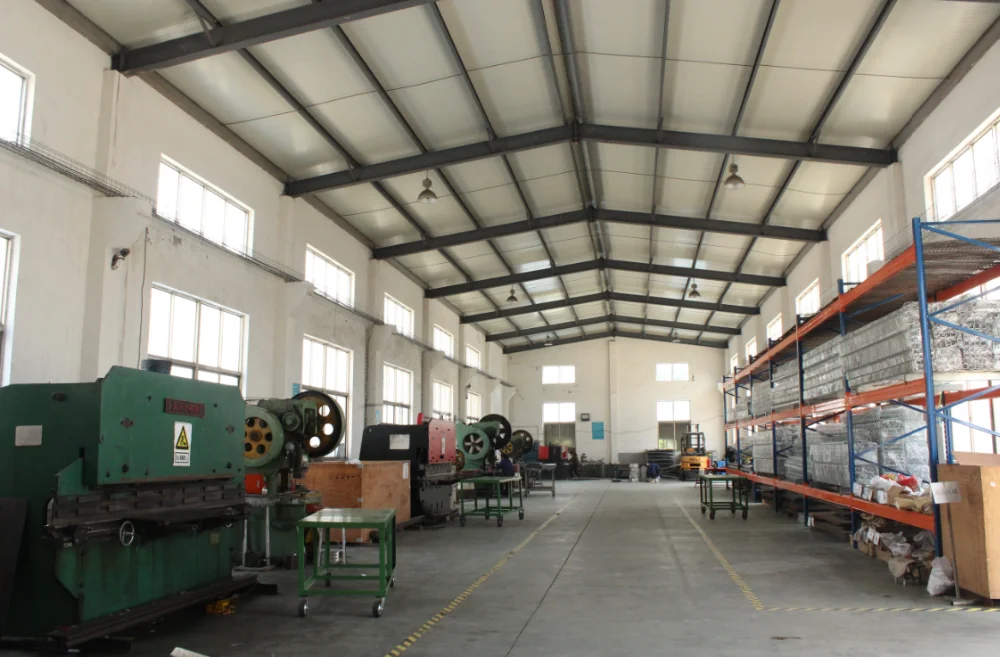

Factory Pictures








FAQ

Product of IEC61537 SGS powder coated wire mesh tray

1.Why you choose our wire mesh cable tray?
a.Easy checking and cleaning
b.Flexible and fast installation
c.Ventilation
d.Light weight and move flexibly
e.To prevent dust for deposition
f.Compared with the normal cable tray,wire mesh cable trays have no horizontal T , Cross and other
connectors,it makes the cost much lower

2.What services we can offer?
a.We are manufacturer with a range of electrical and network cabling equipments , you can enjoy the
one-stop shopping service from our company.
b.Quality and cost driving manufacturer with ISO9001 certificated to provide customers reliable products
with most competitive price..

3.What is the payment term?
.FOB, CIF, CFR (Ningbo, Shanghai, Xiamen, Qingdao)

4.What is the delivery time?
We are manufacturer that have in stock of the normal sizes . We promise delivery 7-12 days after
getting your deposit.

5.Which certification we have got ?
For products : CE, RoSH, UL listing application is on progress
For manufacturer: ISO 9001: 2008, OHSAS 18001, ISO 14001:2004

6.Dou we provide free samples?
.Yes ,you can get the free samples



Professional as one of the leading hot sale stainless steel ss304 wire mesh cable tray manufacturers and suppliers in China, we warmly welcome you to buy discount and low price products in stock with our company - GUOMEI, which can offer you the products customized service.
